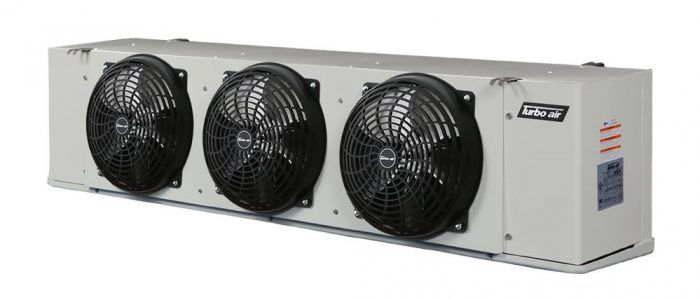

LED114BE

Key Features

11,400 BTU, Low Profile Unit Cooler, Electric Defrost with EC Motor (Dual Speed & Voltage), 208-230V/1Ph/60Hz

Warranty

  • 1 Year Fan Motor and Parts Warranty

Documents

new-message Features

Blue anti-corrosion-fin increases the life span of the coil.

Air-pass guard is located at the bottom of the coil to improve heat exchange rate.

Easy to replace defrost heater (LED model).

Corrugated fin is used to increase heat exchanges rate by expanding the surface area.

Even in confined space, all parts can be reached easily by opening the front cover.

Location of power connector makes replacement of motor convenient.

Seamless inner groove copper tube increases the heat exchange rate by reducing the space between the fin and copper tube.

Venturi type distributor and precise orifice hole are used to minimize the pressure drop and maximize the freezing capacity respectively.

Even in confined space, all parts can be reached easily by opening the front cover.

Thermostat is installed to prevent over temperature on heater.

Circuit opens automatically over 70°F.

Parts available:
Expansion Valve (Sporlan) (Factory Pre-mounted)
Solenoid Valve (Sporlan) (Factory Pre-mounted)
Thermostat (Johnson Control) (Shipped Loose)

The spiral fan guard enables cold air to be delivered efficiently and thoroughly.

The protruding fan and motor placement substantially reduce vibration and noise.

EC Motor (Dual Speed) for high energy efficiency.

Anti-oxidizing stainless steel mounting and bolts.
