M3H24-1-G

Key Features

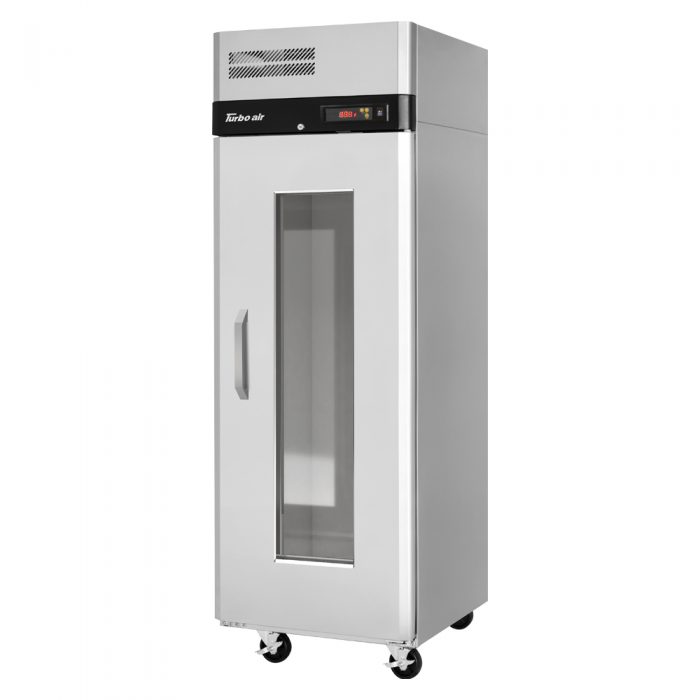

M3 Series Heated Cabinet, reach-in, one-section, 28-3/4″W x 30-3/4″D x 78″H, 22.7 cu. ft. capacity, (1) stainless steel hinged door with glass window (lockable), digital temperature control & monitor system, LED interior lighting, (3) adjustable chrome-plated wire shelves, ducted fan air distribution system, stainless steel exterior and interior, 950 watts, 115v/60/1-ph, 8.5 amps, NEMA 5-15P, ETLus, ETL-Sanitation, MADE IN USA (lead time applies)

Warranty

  • 3 Year Parts & Labor

Documents

new-message Features

Digital temperature control & monitor system
• Keeps food products safe by maintaining constant temperatures.
• Alarm beeps when doors are not sealed.
• Digital display allows for easy monitoring.

Ducted fan air distribution system
Maintains temperature within the food zone

On/Off switch
ON/OFF switch is located on control panel

Stainless steel cabinet construction
The Turbo Air M3 heated cabinet model boasts a stainless steel exterior (galvanized steel top, bottom and back) and interior. It guarantees the utmost in cleanliness and long product life. Sharp corners and edges have been rounded to reduce the risk of injury. The M3 adds a touch of style to the most refined setting.

High-density polyurethane insulation
The entire cabinet structure and solid doors are foamed-in-place using high density, CFC free polyurethane insulation.

Stainless steel door with glass window

LED interior lighting

Adjustable, chrome-plated wire shelves

Heated cabinet holds 140°F ~ 180°F for the best in food preservation

• M3H24-1-G: Right hinged
• M3H24-1-G-L: Left hinged

STANDARD FEATURES
• Door locks
• 4” dia. swivel casters with locks on the front set
• Easy replaceable one piece magnetic door gaskets
• Solid and sturdy grille design
** Lead time applies. Please contact your sales representative for more details to order.

Warning: This product can expose you to chemicals including Bisphenol A(BPA) and Di (2-ethylhexyl) phthalate (DEHP) and Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

nuts Parts & Accessories

OPTIONAL ACCESSORIES
• 5” caster, 1/2” diameter & 13 TPI: M726500100 (non-brake), M726500200 (w/ brake)
• 6” stainless steel leg: 30221M0600
• Half door bun tray rack: TSP-2224 (each holds up to six 18”L x 26”D sheet pans)
• Full door bun tray rack: TSP-2250 (each holds up to fifteen 18”L x 26”D sheet pans)
• 5 pairs of universal tray slides and pilasters for M3H24-1: TS1-UNM
